Resources


Specification Sheet



Accessories

  • Leg kit part #: 301110006

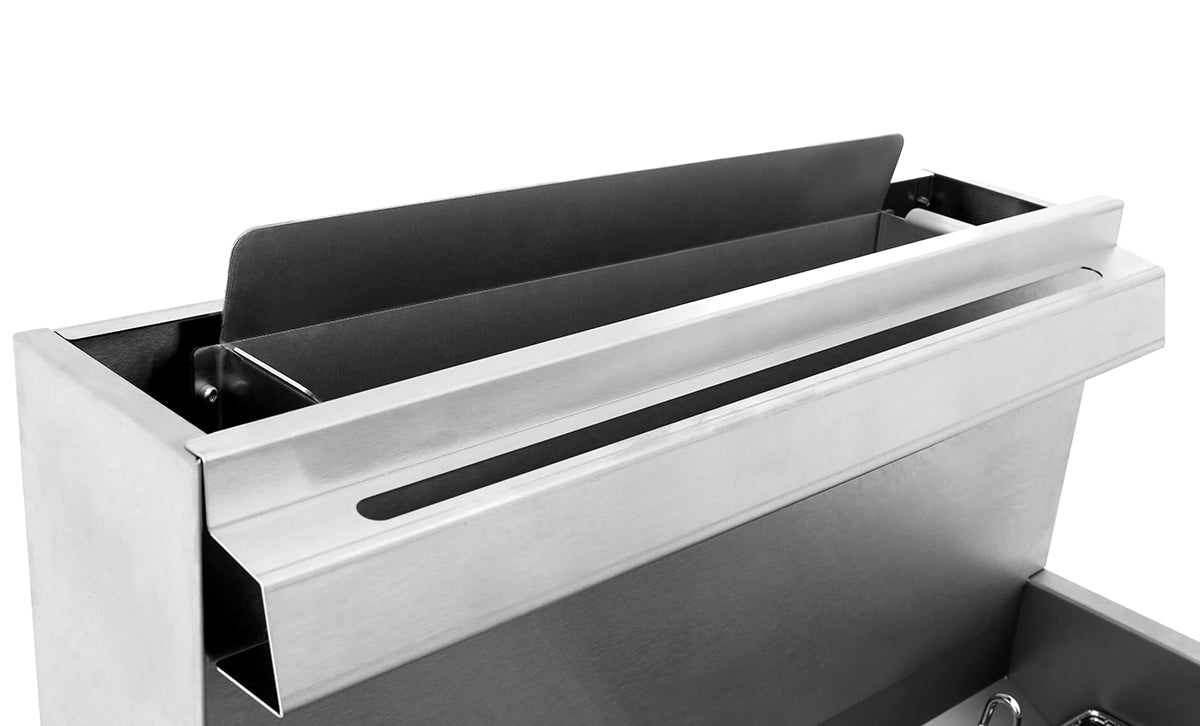

  • Fryer splash guard part #: 21101001047
  • ATFS-35ES & ATFS-40 & ATFS-50 Fryer cover #: 21201001019
  • ATFS-75 Fryer cover #: 21201003015
  • Joiner strip #: 21101001046



Specifications

Model ATFS-75
Burners and Control Method 5 Burners Independent Manual Control
Gas Type NG LP
Intake-tube Pressure (in. W.C.) 4 10
Per B.T.U./h 34,000 30,000
Total B.T.U./h 170,000 150,000
Basket Dimensions 13 3/10×9 3/10×5 9/10
Exterior Dimension 21 1/10×30 1/10×44 2/5
Nozzle No.# NG36 LP52
Regulator 4" w.c. 10" w.c.
Net Weight (lbs) 168
Gross Weight (lbs) 200

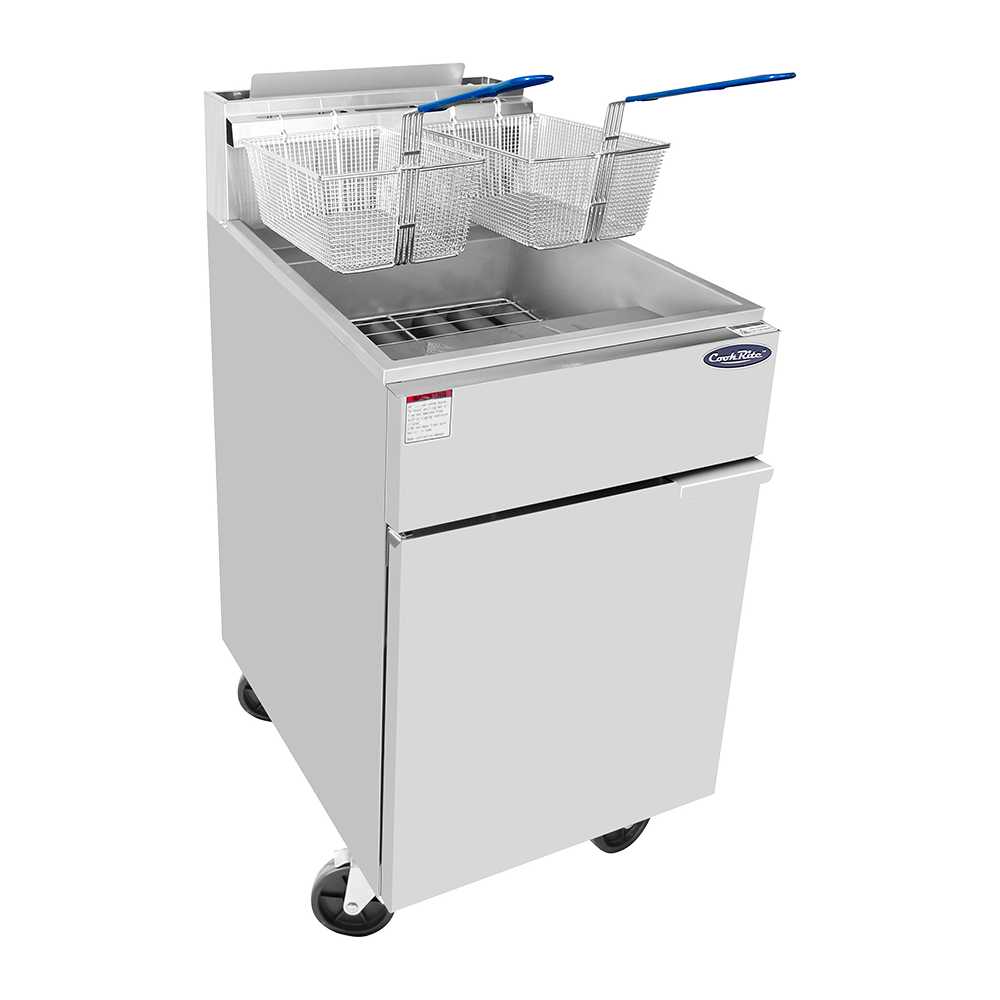

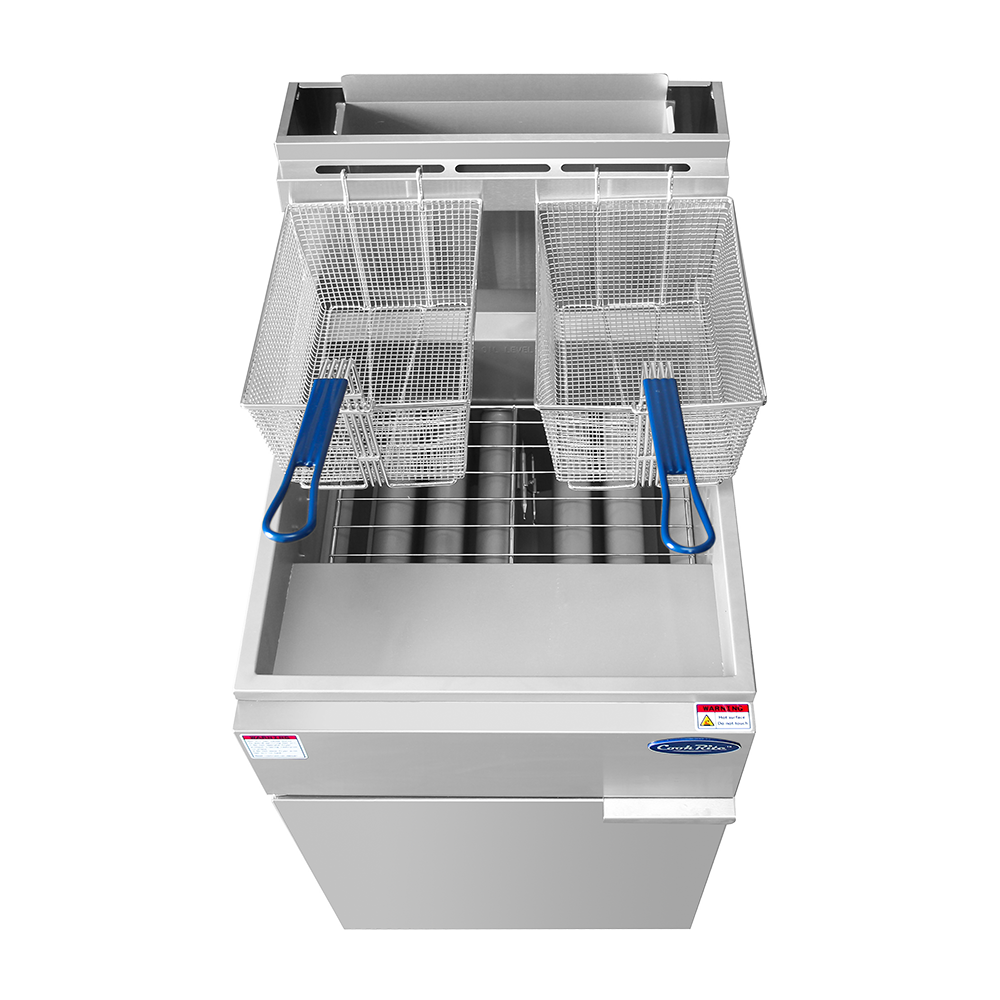

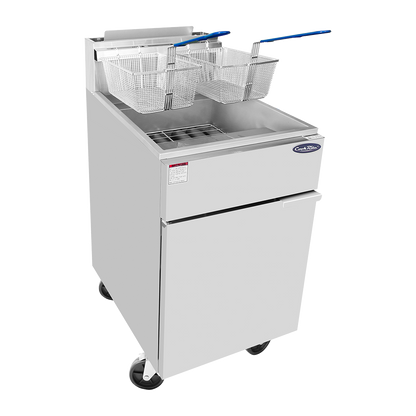

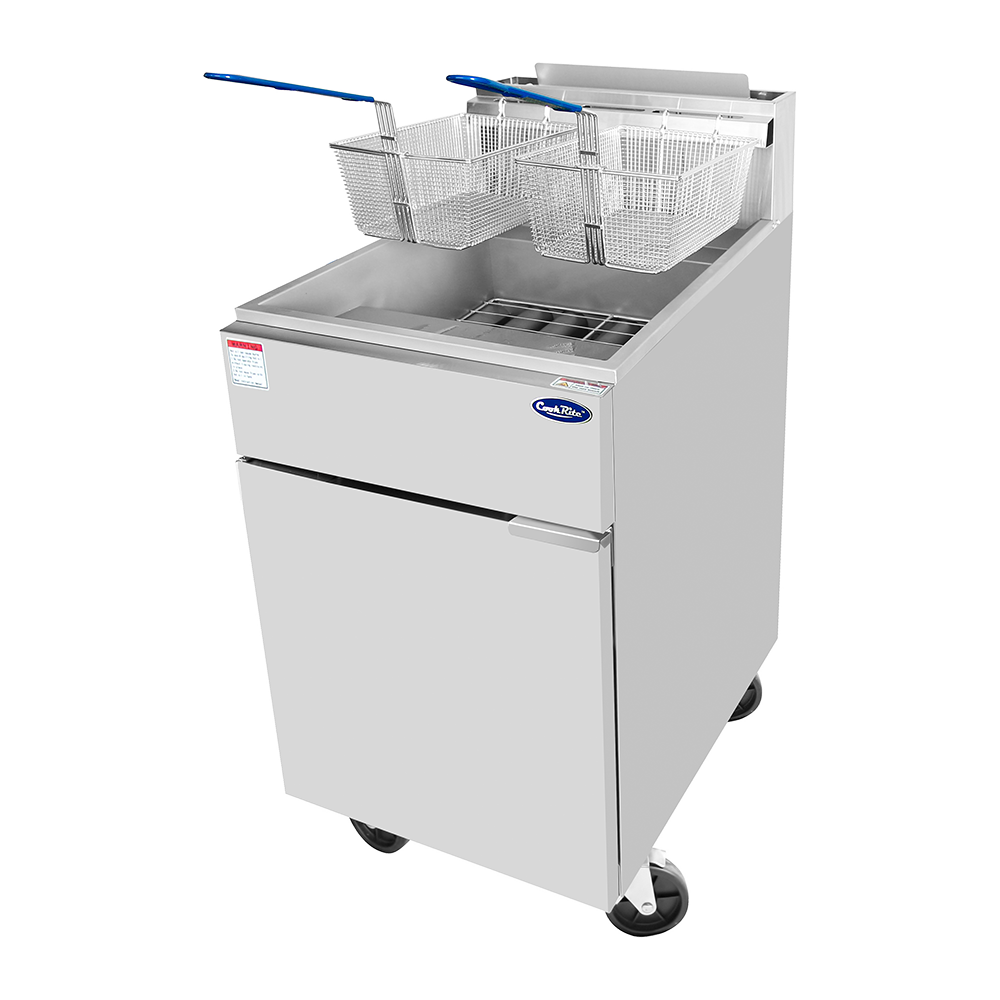

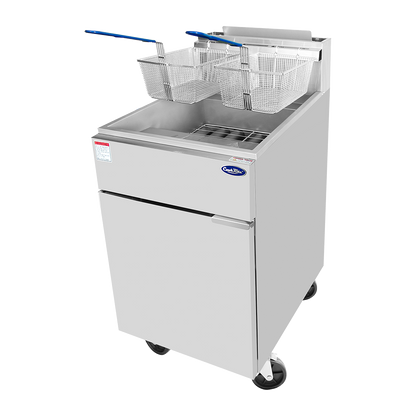

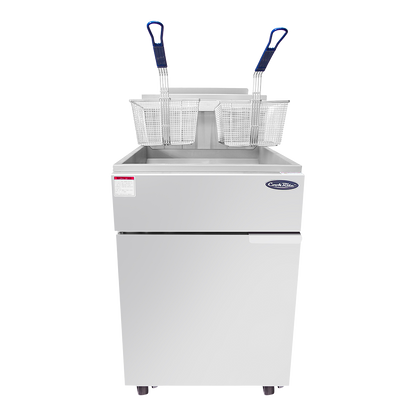

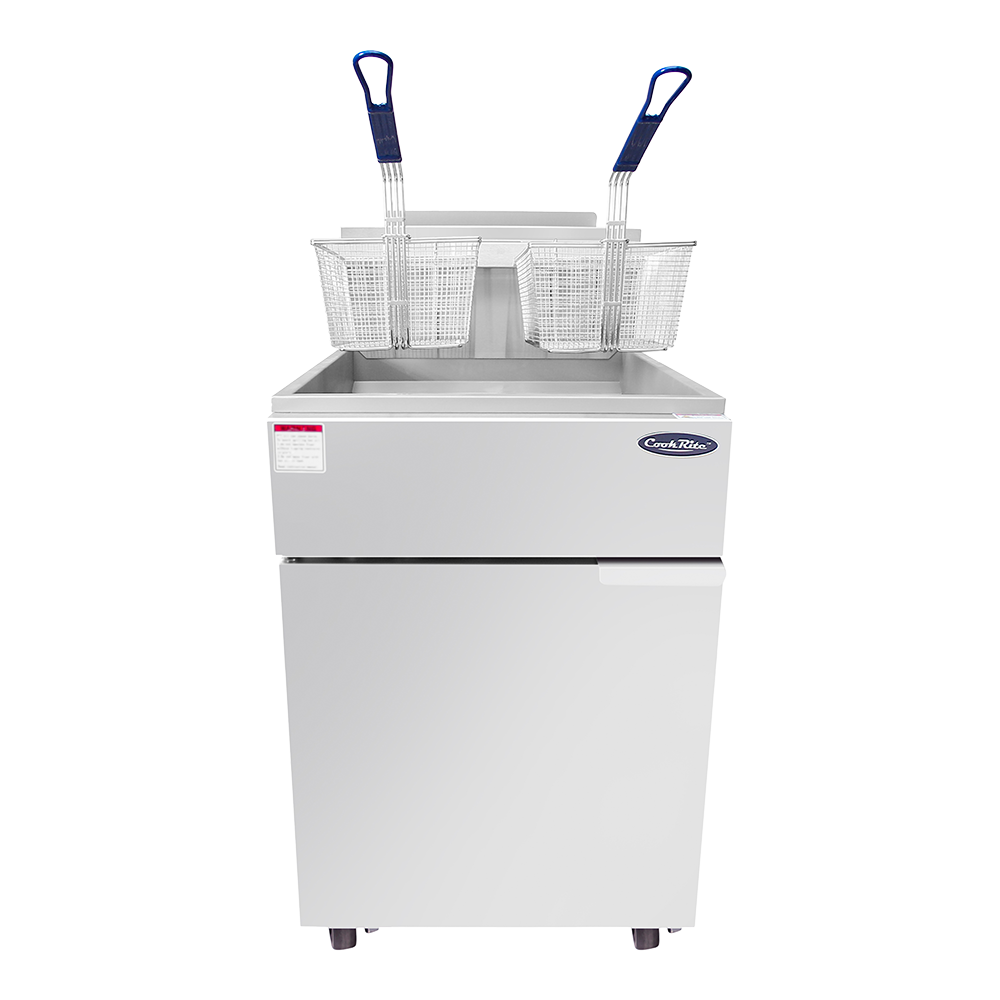

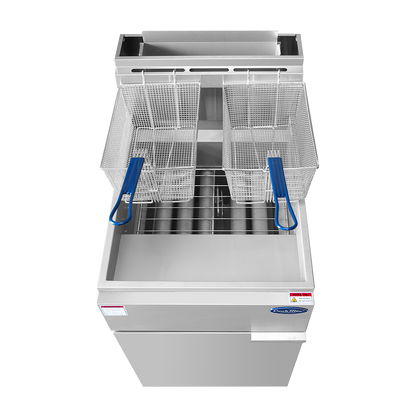

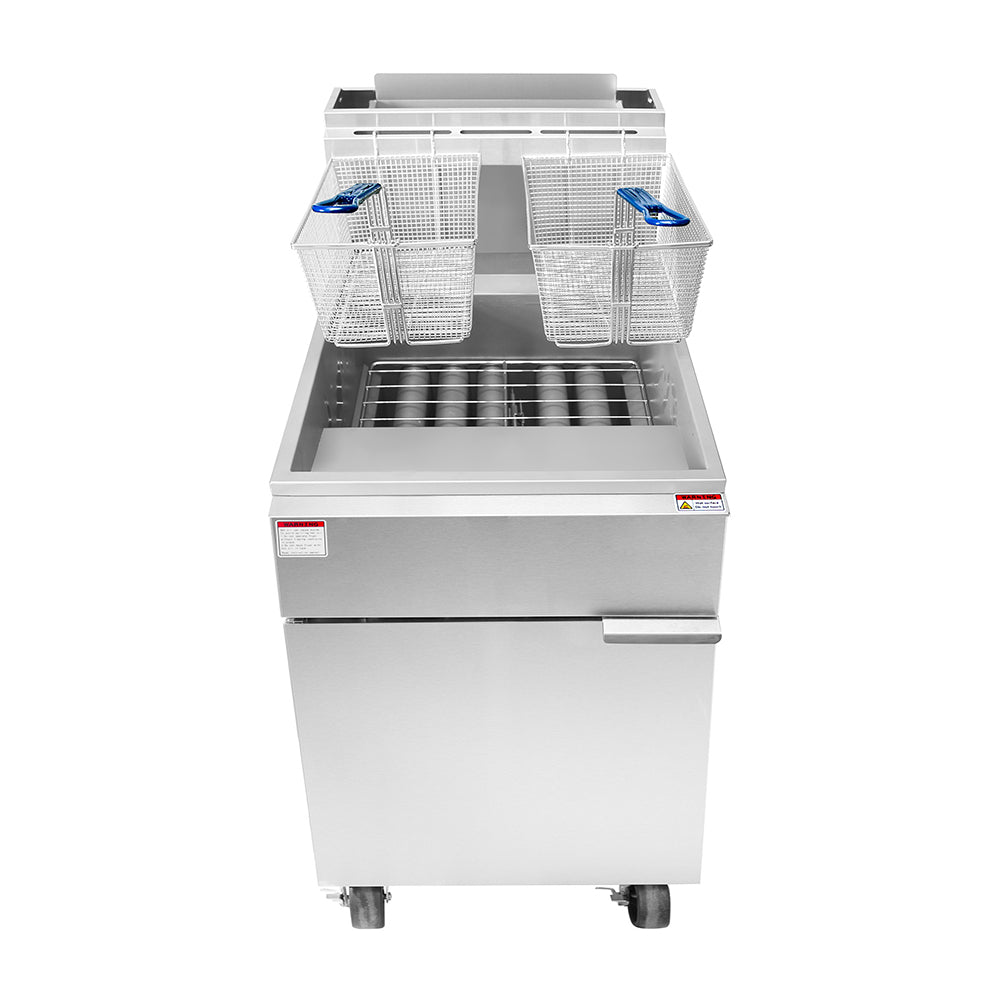

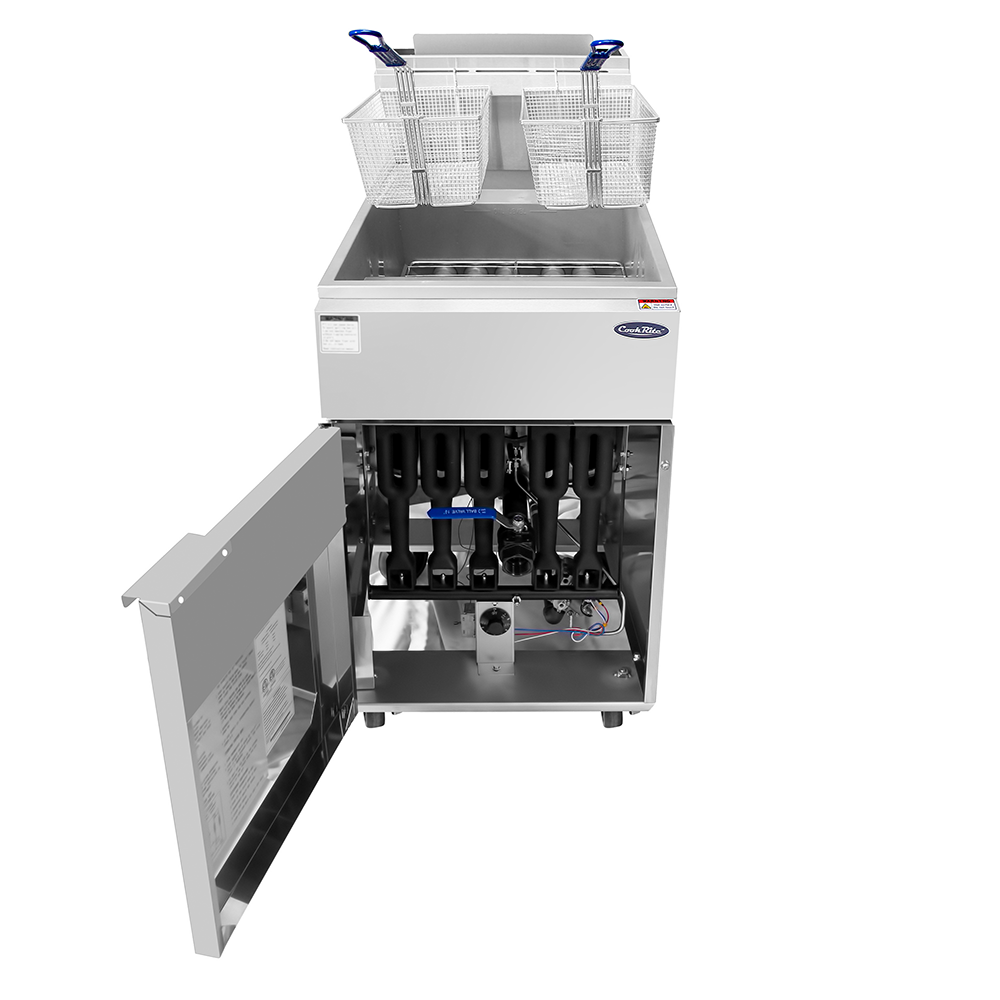

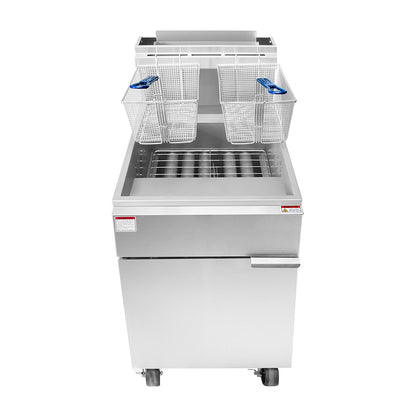

Atosa ATFS-75 HD 75 LB S/S Deep Fryer

Atosa ATFS-75 HD 75 LB S/S Deep Fryer

SKU: ATFS-75

Regular price $1,602.00
Regular price Sale price $1,602.00
Sale Sold out

Features

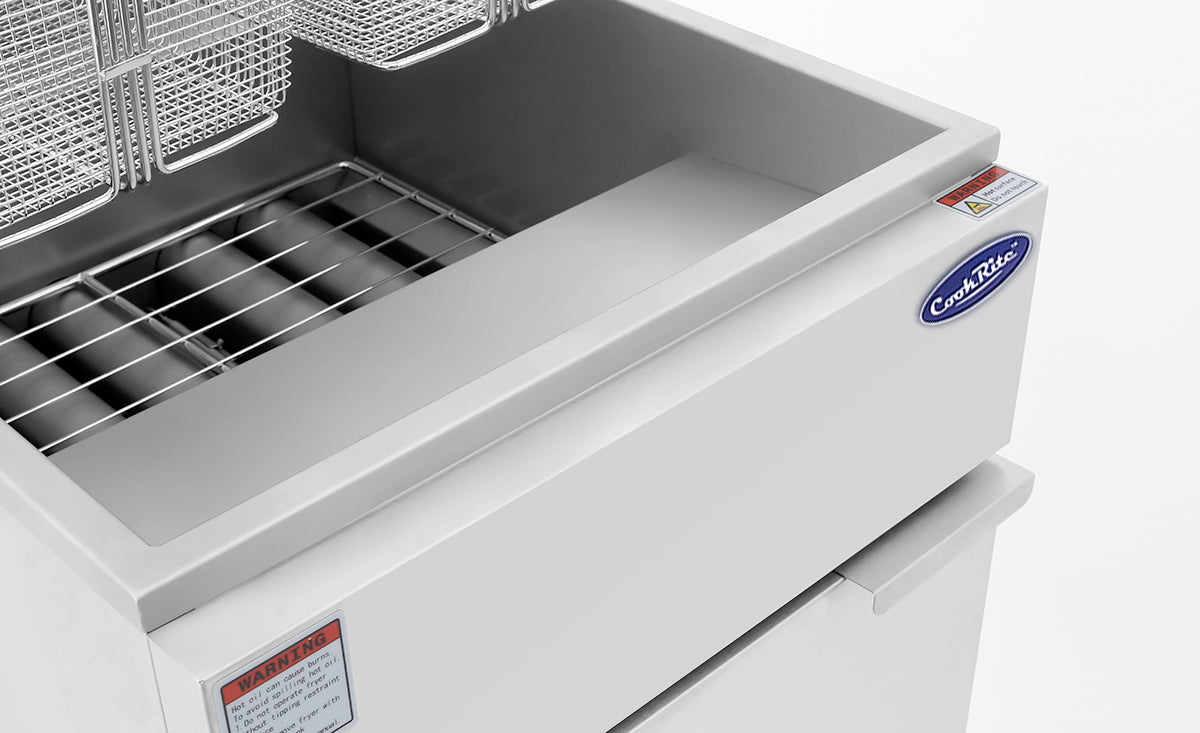

  • Stainless steel exterior and interior
  • Welded stainless steel tank

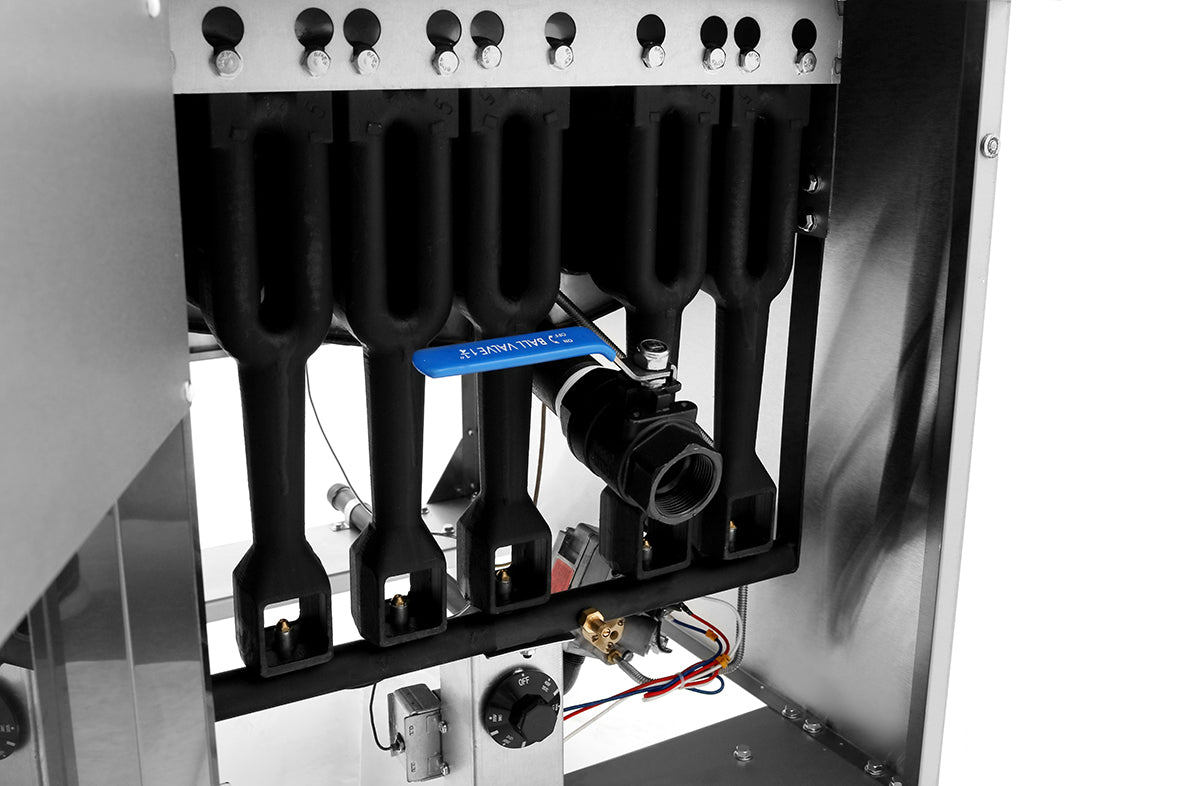

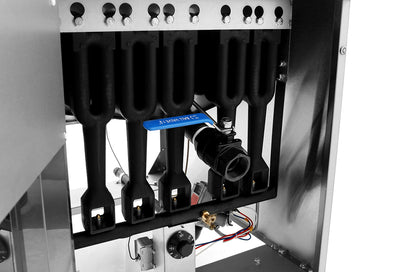

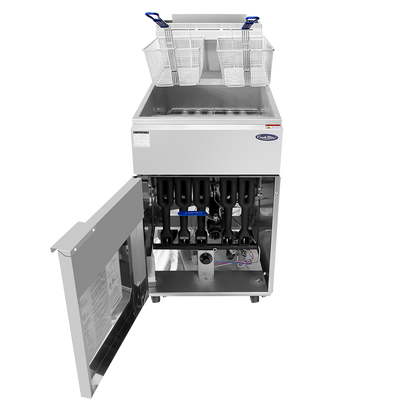

  • Heavy duty burners with a stnding flame and standby pilots

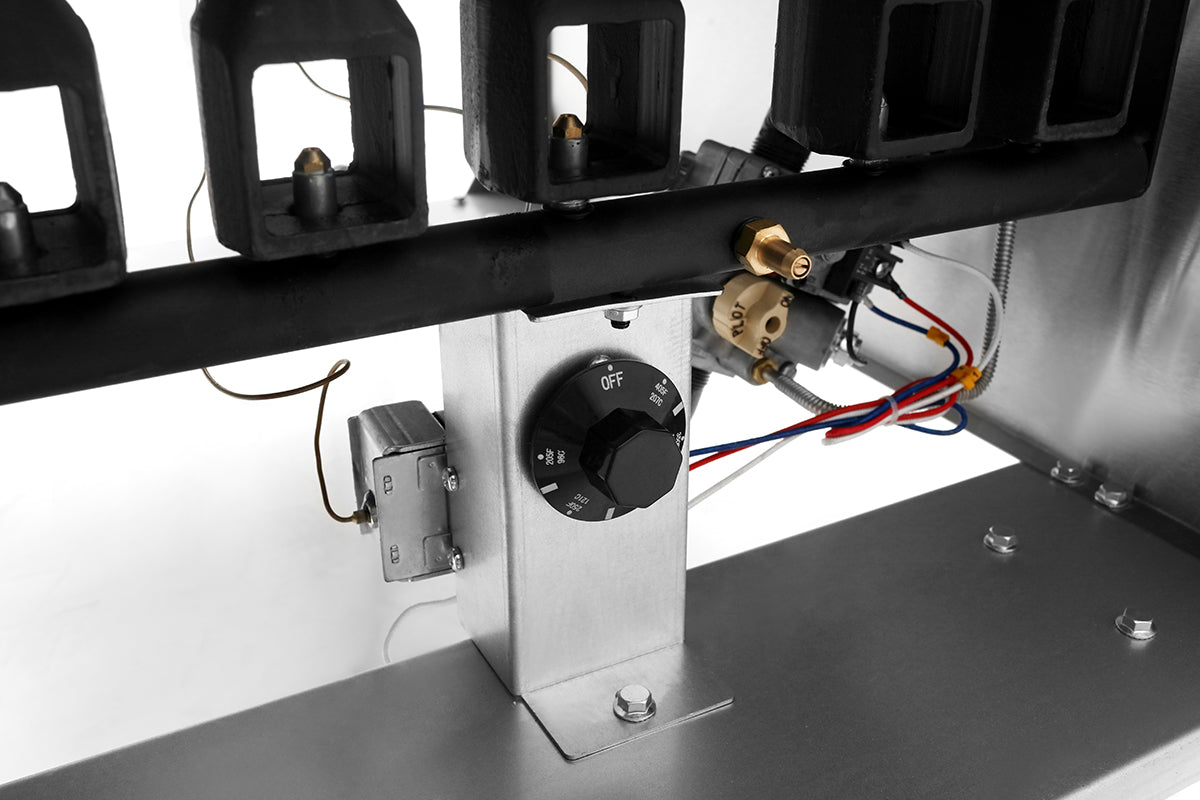

  • High quality thermostat maintains select temperature automatically between 200°F-400°F
  • Oil cooling zone in the bottom of the tank captures food particles and extends oil life
  • Safety valve with an automatic voltage stabilizing function
  • Self-reset high temperature limiting device

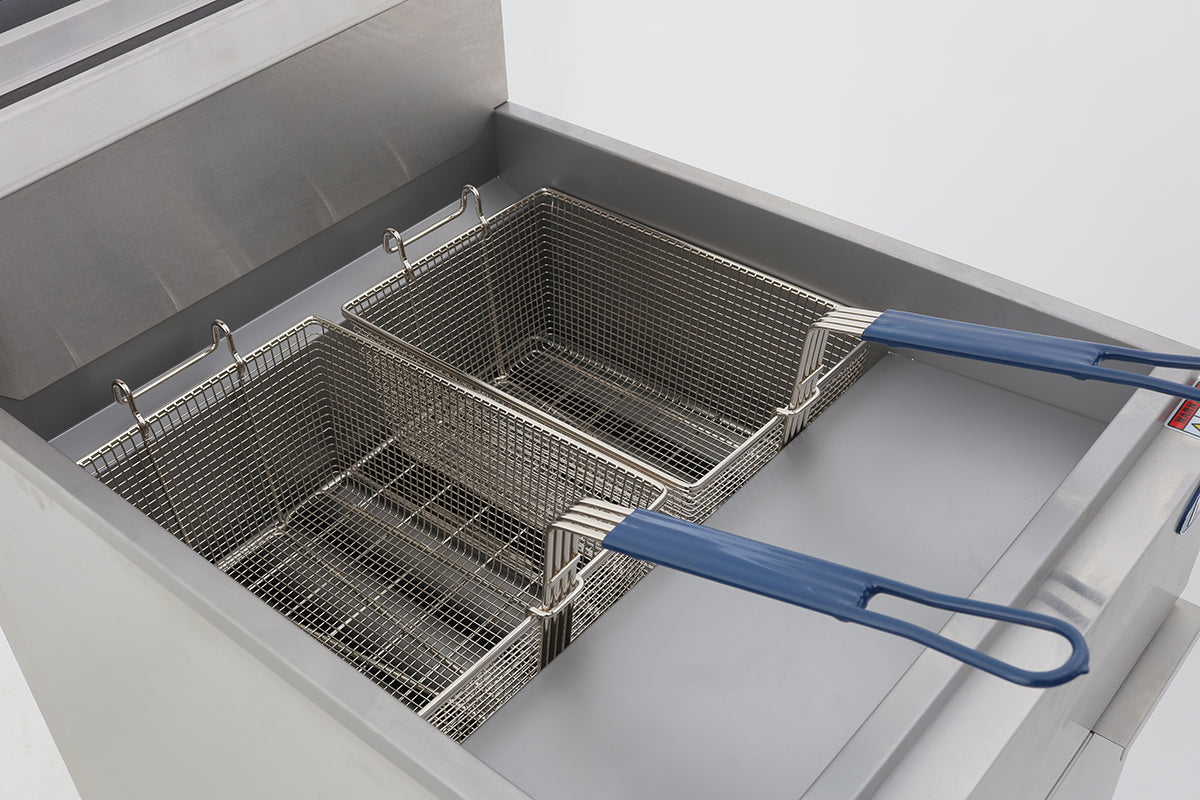

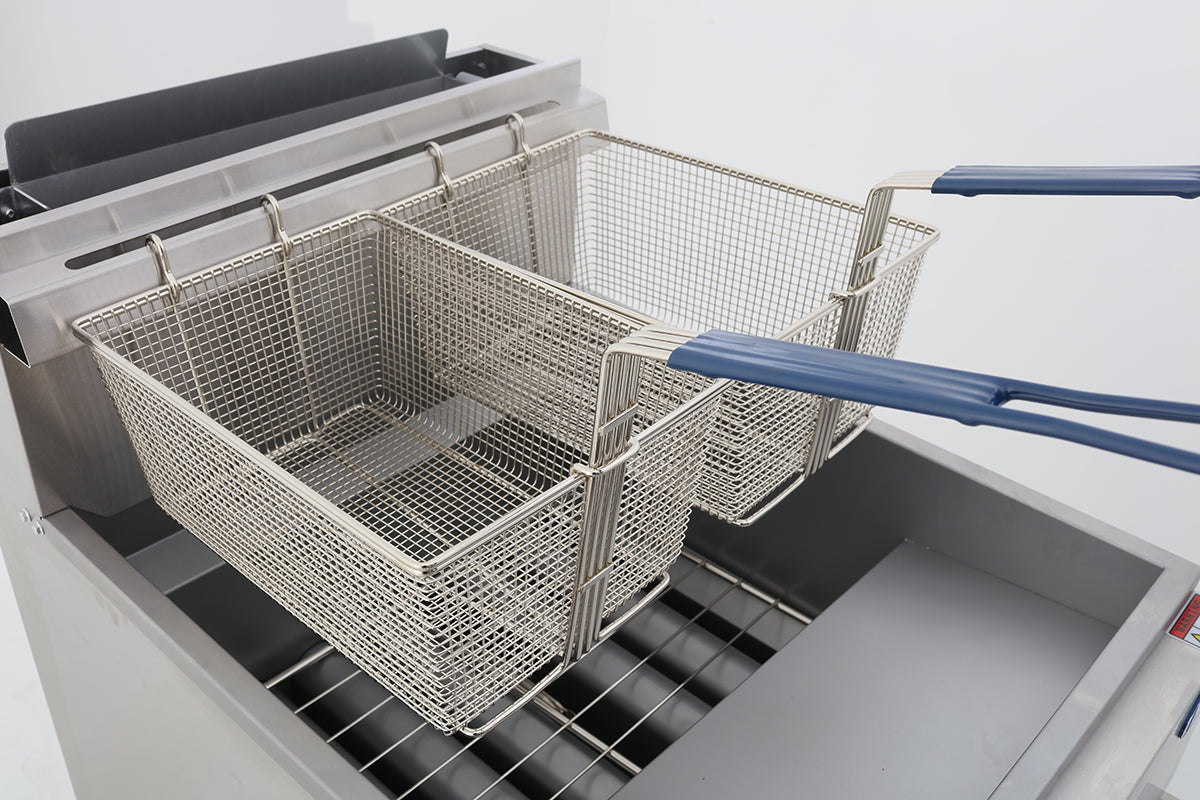

  • Two(2) nickel plated baskets with coated handles standard
  • Wire crumb rack and basket hanger standard
  • Available in Natural & Propane gas
  • 3/4 ” NPT rear gas connection and regulator
  • Four(4) casters standard
