Description

The Chef Base series is equipped with innovative features that protect from heat-induced distortion of the work top surface caused by prolonged exposure to mounted cooking equipment. Unique only to Everest, dual air chambers, exhaust vents and additional insulation material diffuse and redirect heat away from the work top preserving its structural integrity. Equipped with the Blizzard R290 system, a fully self-contained and detachable condensing unit which uses natural, environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.

Resources



Individual Spec SheetFamily Spec SheetFeatures & BenefitsOwner's Manual

Specification

Temperature Refrigerator
Finish Stainless Steel
Door Style Drawer
Door Count N/A
Cu. Ft. Capacity 4.4
Exterior Length (in.) 72 3/8
Exterior Depth (in.) 32 1/8
Exterior Height (in.) 20
Power (V-Hz-Ph) 115-60-1
Amps 3.5
Compressor HP 1/4+
Crated Weight (lbs.) 421

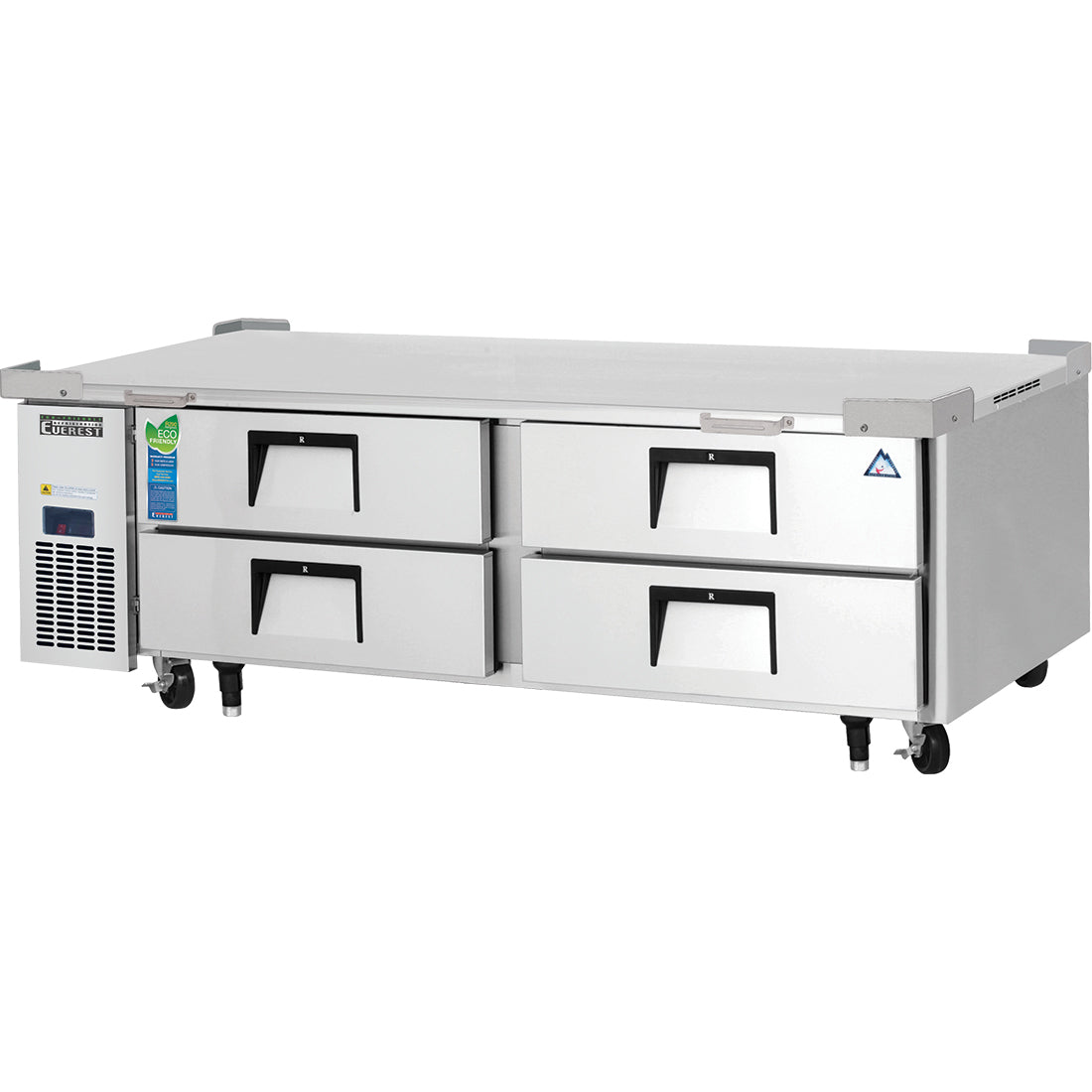

Everest Refrigeration ECB72D4 4 Drawer Chef Bases, 72"

Everest Refrigeration ECB72D4 4 Drawer Chef Bases, 72"

SKU: ECB72D4
1 1

$5,383.00
$5,383.00
Sale Sold out

Features

  • Side-mounted Blizzard R290 condensing unit uses eco-friendly, EPA-compliant R290 refrigerant with zero ODP and low GWP.
  • Detachable unit design eliminates the need for on-site brazing, making maintenance easier.
  • ECM fan motors provide rapid, energy-efficient cooling.
  • Full-length air duct ensures consistent cold air circulation throughout the cabinet.
  • Auto defrost cycle activates by time and temperature for reliable performance.
  • Corrosion-resistant condenser and evaporator coils enhance durability.
  • Energy-efficient condensate drain pan eliminates external drains or heaters.
  • Heavy-duty stainless steel interior and exterior with rounded corners for safety and durability.
  • Insulated 16-gauge stainless steel worktop with vented air chamber resists heat and warping.
  • Reinforced corner guards and 12-gauge caster brackets ensure stability for mounted equipment.
  • Six 5" swivel casters with front locks and three stabilizers provide enhanced mobility and support.
  • Stainless steel drawers with ball-bearing slides and magnetic gaskets ensure smooth operation and easy cleaning.
  • Digital controller with LED display; preset temperature of 35°F, adjustable from 33°F to 54°F.
  • Overheat protection alarm for compressor and condenser ensures safe operation.
  • Pre-wired and ready for use with a 115V/60Hz/1Ph configuration and NEMA 5-15P plug.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.p65warnings.ca.gov for additional information.
