Description

The Chef Base series is equipped with innovative features that protect from heat-induced distortion of the work top surface caused by prolonged exposure to mounted cooking equipment. Unique only to Everest, dual air chambers, exhaust vents and additional insulation material diffuse and redirect heat away from the work top preserving its structural integrity. Equipped with the Blizzard R290 system, a fully self-contained and detachable condensing unit which uses natural, environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.

Resources



Individual Spec SheetFamily Spec SheetFeatures & BenefitsOwner's Manual

Specification

Temperature Refrigerator
Finish Stainless Steel
Door Style Drawer
Door Count N/A
Cu. Ft. Capacity 6
Exterior Length (in.) 95 1/2
Exterior Depth (in.) 32 1/8
Exterior Height (in.) 20
Power (V-Hz-Ph) 115-60-1
Amps 2.5
Compressor HP 1/3
Crated Weight (lbs.) 567

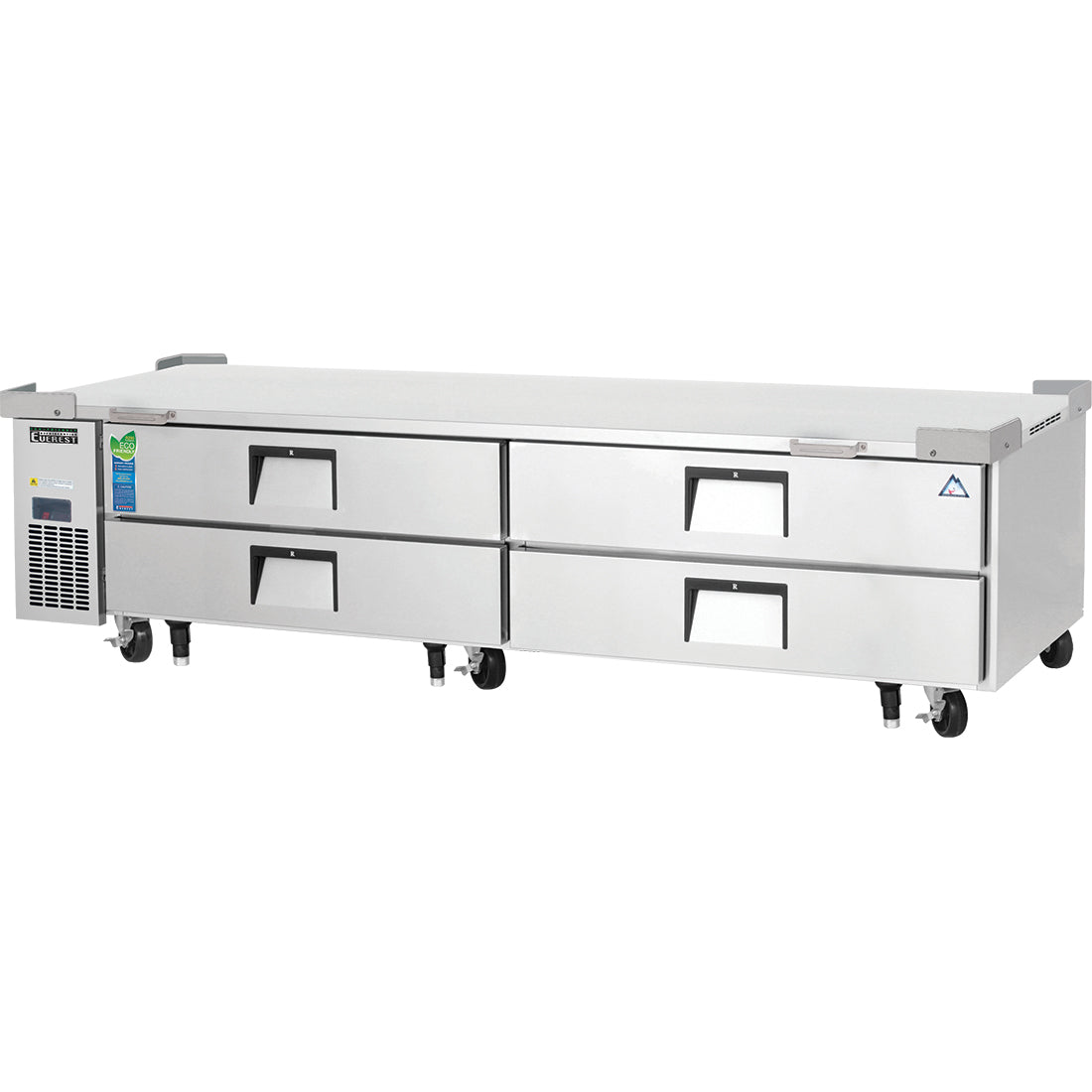

Everest Refrigeration ECB96D4 4 Drawer Chef Bases, 96"

Everest Refrigeration ECB96D4 4 Drawer Chef Bases, 96"

SKU: ECB96D4
1 1

$6,708.00
$6,708.00
Sale Sold out

Features

  • Side-mounted, self-contained, and fully detachable Blizzard R290 condensing unit with environmentally friendly R290 refrigerant (zero ODP, low GWP)
  • Electronically commutated (ECM) fan motors for energy-efficient, rapid cooling
  • Full-length air duct ensures optimal cold air circulation
  • Time-initiated, temperature-terminated auto defrost cycle for seamless operation
  • Large capacity, corrosion-resistant condenser and evaporator coils
  • Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters
  • High-performance, auto-reverse condenser fan motor supports compressor ventilation and coil cleaning
  • Pressure relief devices allow rapid cabinet re-entry
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P
  • Heavy-duty stainless steel interior/exterior with rounded corners for a hazard-free workspace
  • Open-spaced interior with no walls between compartments
  • Galvanized steel bottom and rear
  • 2.5" thick high-density polyurethane insulation
  • 16-gauge stainless steel worktop with extra layer of high-grade insulation material and air chamber to mitigate heat
  • Six 5" swivel casters with locks on front set and three front leg stabilizers
  • Multi-function digital controller with LED display; factory preset at 35°F (range 33°F to 54°F)
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.p65warnings.ca.gov for additional information.
