Description

The series provides versatility in storage, display and temperature combinations in a traditional, bottom mounted design. It also features a deeper cabinet depth to meet the operator's specific space and storage needs. Patented vacuum relief valves in addition to conventional pressure relief mechanisms ensure rapid re-entry while keeping an airtight seal. Equipped with the Blizzard R290 system, a fully self-contained and detachable condensing unit which uses natural, environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.

Resources



Individual Spec SheetFamily Spec SheetFeatures & BenefitsOwner's Manual

Specification

Temperature Refrigerator
Finish Stainless Steel
Door Style Swing Glass
Door Count 1
Cu. Ft. Capacity 22
Exterior Length (in.) 29 1/4
Exterior Depth (in.) 33 1/8
Exterior Height (in.) 77
Power (V-Hz-Ph) 115-60-1
Amps 3
Compressor HP 1/3
Crated Weight (lbs.) 390

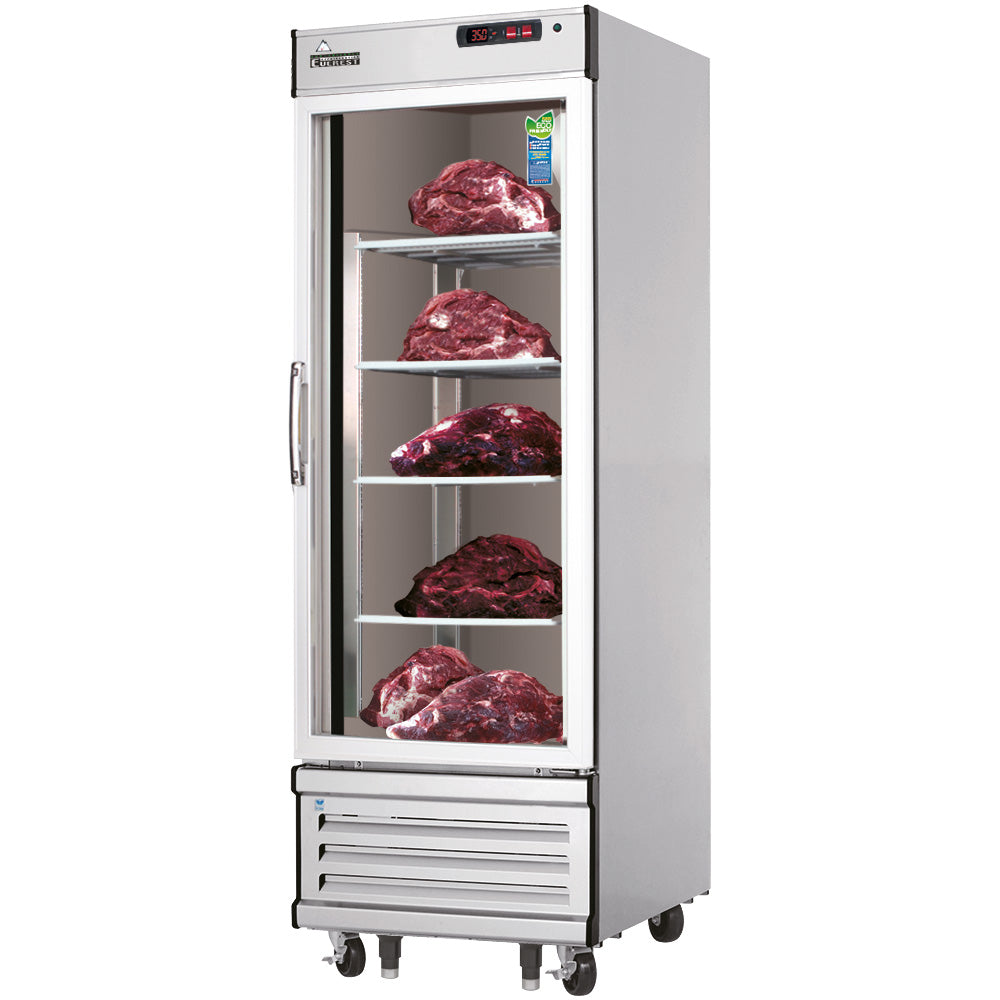

Everest Refrigeration EDA1 1 Door Dry Ager & Thawing Refrigerator, 29 1/8"

Everest Refrigeration EDA1 1 Door Dry Ager & Thawing Refrigerator, 29 1/8"

SKU: EDA1
1 1

$6,165.00
$6,165.00
Sale Sold out

Features

  • Bottom-mounted, self-contained Blizzard R290 condensing unit uses eco-friendly, EPA-compliant R290 refrigerant (zero ODP, GWP of 3).
  • Dual ECM fan motors optimize circulation and accelerate the meat maturation process.
  • Full-length air duct and airflow guard ensure optimal cold air circulation.
  • Air circulation guard prevents floor vent obstruction.
  • Time-initiated, temperature-terminated auto defrost for seamless operation.
  • Corrosion-resistant, large-capacity condenser and evaporator coils.
  • Self-maintaining condensate drain pan eliminates need for external drains or electric heaters.
  • Auto-reverse condenser fan motor aids ventilation and coil cleaning.
  • Pressure relief devices enable rapid cabinet re-entry.
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
  • Heavy-duty stainless steel exterior with rounded corners for safety.
  • Ceramic-coated aluminum interior walls diffuse infrared rays to enhance meat maturation.
  • Shielded LED lighting with on/off switch offers bright illumination at low heat output.
  • Low-emissivity double glass panes and matte aluminum door frames for efficient cooling.
  • Self-closing doors with adjustable torsion system ensure a positive seal.
  • Snap-in magnetic gaskets allow easy cleaning and replacement.
  • Four stainless steel shelves and drip pans per section with adjustable clips.
  • Digital controller with LED display and factory preset 35°F temperature (range: 33°F–54°F).
  • Audible overheat alarm for compressor and condenser coil.
  • Optional stainless steel hangers, hooks, additional shelves, and adjustable legs.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.p65warnings.ca.gov for additional information.
