Description

The Undercounter Side Mount series comes with the multi-functional advantages of the back mount line with added features to enhance user experience. It comes with a robust digital display and control system for precise temperature management. Equipped with the Blizzard R290 system, a fully self-contained and detachable condensing unit which uses environmentally friendly R404A refrigerant with zero (0) Ozone Depletion Potential (ODP) and?EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.

Resources



Individual Spec SheetFamily Spec SheetFeatures & BenefitsOwner's ManualOvershelf Specs and Assembly

Specification

Temperature Dual Temperature
Finish Stainless Steel
Door Style Swing Solid
Door Count 3
Cu. Ft. Capacity 14 (R), 9 (F)
Exterior Length (in.) 71 1/8
Exterior Depth (in.) 31 1/2
Exterior Height (in.) 29 1/4
Power (V-Hz-Ph) 115-60-1
Amps 7.77
Compressor HP 1/2
Crated Weight (lbs.) 356

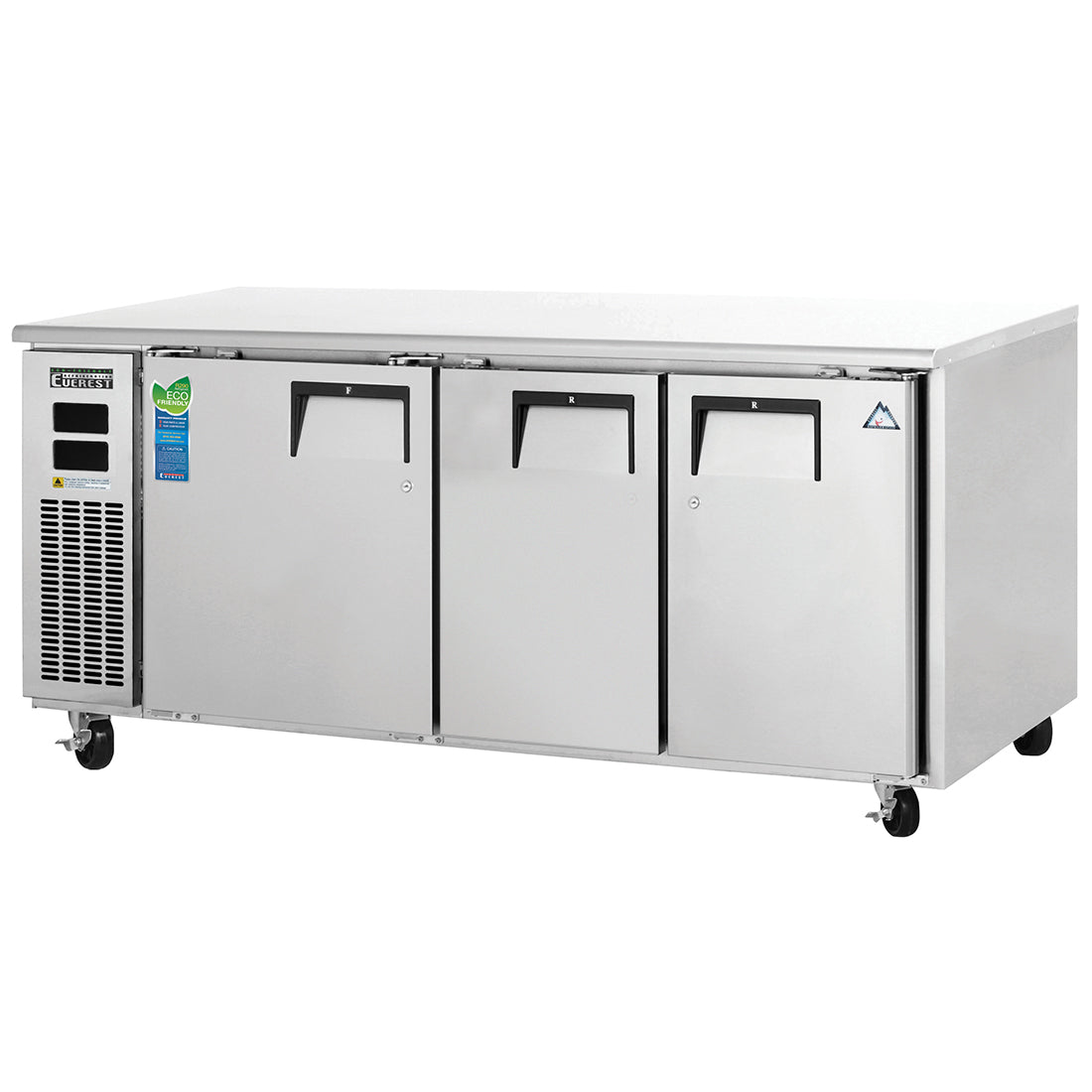

Everest Refrigeration ETRF3 3 Door Undercounter 2/3 Ref & 1/3Fzr Dual Temp, 71 1/2"

Everest Refrigeration ETRF3 3 Door Undercounter 2/3 Ref & 1/3Fzr Dual Temp, 71 1/2"

SKU: ETRF3
1 1

$4,190.00
$4,190.00
Sale Sold out

Features

  • Side-mounted, self-contained condensing unit with environmentally friendly R290 refrigerant (zero ODP, low GWP).
  • Electronically commutated (ECM) fan motors ensure rapid and energy-efficient cooling.
  • Time-initiated and temperature-terminated auto defrost heater for freezers; air defrost for refrigerators.
  • Large capacity, corrosion-resistant condenser and evaporator coils.
  • Self-maintaining condensate drain pan, no need for external drains or electric heaters.
  • High-performance, auto-reverse condenser fan motor aids in compressor ventilation and coil cleaning.
  • Pressure relief devices for easy cabinet re-entry.
  • Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
  • Heavy-duty stainless steel interior/exterior with rounded corners for safety.
  • Insulated wall between refrigerator and freezer compartments.
  • 16-gauge, high-quality stainless steel worktop.
  • Galvanized steel bottom and rear for structural strength.
  • 2.5" thick high-density polyurethane insulation for efficiency.
  • Energy-efficient, silicone-coated, shatter-proof LED lighting with low heat output.
  • Multi-function digital controller with clear LED display for easy temperature monitoring.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.p65warnings.ca.gov for additional information.
