Description
Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch. Two (2) stainless steel 1000 watt finned tube heating elements per section for uniform generation of electric heat. Cabinet comes with a total of 2000 watts. Three (3) lifetime guaranteed, cam-lift hinges. Full 180° open capability with a stay open feature at 120°. Designed to accept roll-in racks (inboard castors) with a maximum dimension of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm). One (1) heavy gauge stainless steel ramp standard (per door). Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Files & Downloads
Specifications
Doors | 1 fr / 1 bk |
Width (in.) | 35 |
Depth (in.) | 37–1/2 |
Height (in.) | 83–3/4 |
Voltage | 115/208-230/60 |
Watts | 2000 |
NEMA Config. | 14-20P |
Cord Length (total ft.) | 9 |
Weight (lbs.) | 350 |

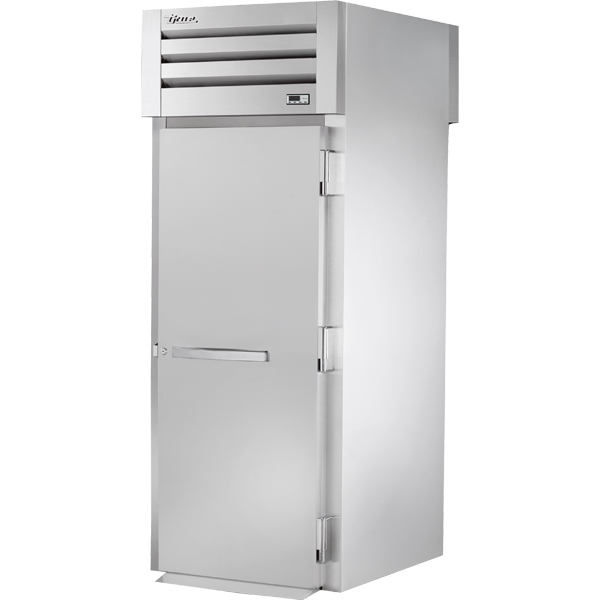

True STG1HRT-1S-1S Roll-Thru Solid Swing Door Heated Cabinet
True STG1HRT-1S-1S Roll-Thru Solid Swing Door Heated Cabinet
SKU: STG1HRT-1S-1S
